Arduino timeline.

El proyecto Arduino tiene sus orígenes en el proyecto Wiring, el cual surge por el año 2003 como una herramienta para estudiantes en el Interaction Design Institute Ivrea en Ivrea, Italia,con el objetivo de proporcionar una forma fácil y económica de que principiantes y profesionales crearan dispositivos que pudieran interactuar con su entorno mediante sensores y actuadores.

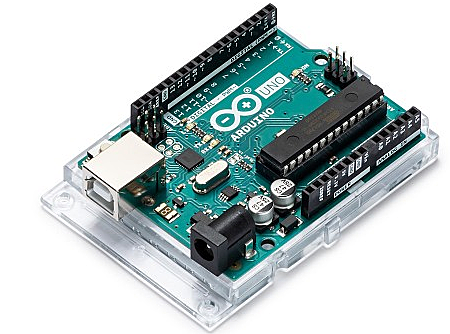

Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (of which 6 provide PWM output)
PWM Digital I/O Pins 6
Analog Input Pins 6
DC Current per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega328P) of which 0.5 KB used by bootloader
SRAM 2 KB (ATmega328P)
EEPROM 1 KB (ATmega328P)
Clock Speed 16 MHz
LED_BUILTIN 13
Length 68.6 mm
Width 53.4 mm
Weight 25 g

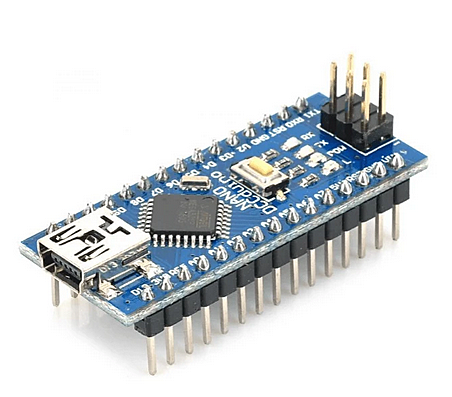

Microcontroller ATmega328
Architecture AVR
Operating Voltage 5 V
Flash Memory 32 KB of which 2 KB used by bootloader
SRAM 2 KB
Clock Speed 16 MHz
Analog IN Pins 8
EEPROM 1 KB
DC Current per I/O Pins 40 mA (I/O Pins)
Input Voltage 7-12 V
Digital I/O Pins 22 (6 of which are PWM)
PWM Output 6
Power Consumption 19 mA
PCB Size 18 x 45 mm
Weight 7 g
Product Code A000005

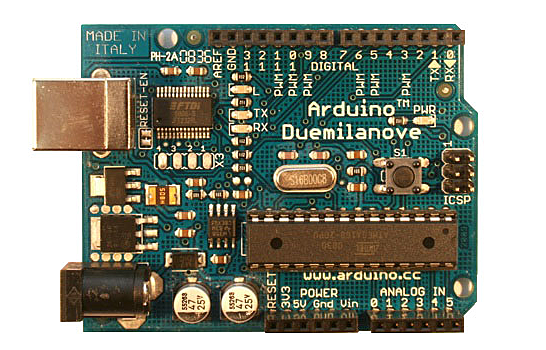

La nueva versión de Arduino para el año 2009
Especificaiones:
Microcontroller ATmega168
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 6
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by bootloader
SRAM 1 KB (ATmega168) or 2 KB (ATmega328)
EEPROM 512 bytes (ATmega168) or 1 KB (ATmega328)
Clock Speed 16 MHz

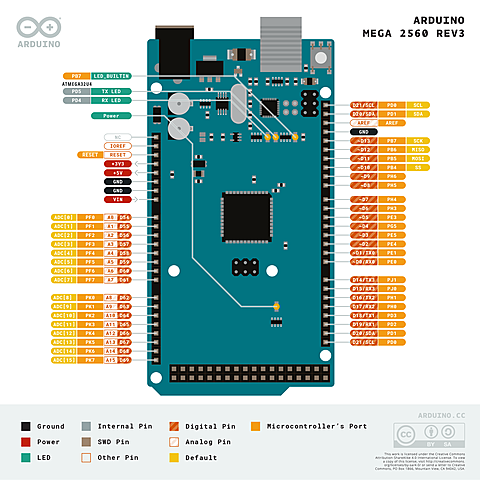

Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 54 (of which 15 provide PWM output)
Analog Input Pins 16
DC Current per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 256 KB of which 8 KB used by bootloader
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz
LED_BUILTIN 13
Length 101.52 mm
Width 53.3 mm
Weight 37 g

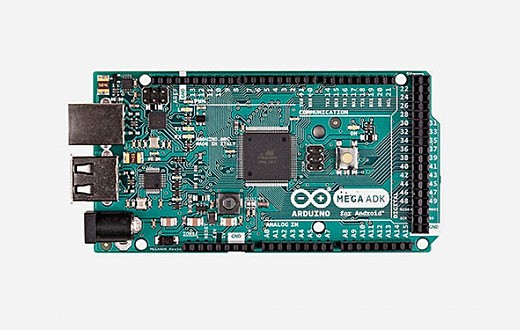

Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 54 (of which 15 provide PWM output)
Analog Input Pins 16
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 256 KB of which 8 KB used by bootloader
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz
USB Host Chip MAX3421E
Length 101.52 mm
Width 53.3 mm
Weight 36 g

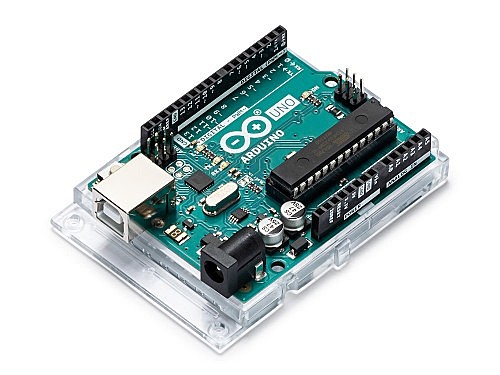

Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (of which 6 provide PWM output)
PWM Digital I/O Pins 6
Analog Input Pins 6
DC Current per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega328P) of which 0.5 KB used by bootloader
SRAM 2 KB (ATmega328P)
EEPROM 1 KB (ATmega328P)
Clock Speed 16 MHz
LED_BUILTIN 13
Length 68.6 mm
Width 53.4 mm
Weight 25 g

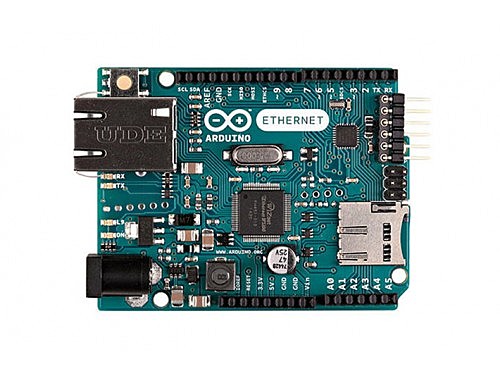

Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage Plug 7-12V
Input Voltage Plug (limits) 6-20V
Input Voltage PoE (limits) 36-57V
Digital I/O Pins 14 (of which 4 provide PWM output)
Analog Input Pins 6
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega328P) of which 0.5 KB used by bootloader
SRAM 2 KB (ATmega328P)
EEPROM 1 KB (ATmega328P)
Clock Speed 16 MHz
W5100 TCP/IP Embedded Ethernet Controller
Length 68.6 mm
Width 53.3 mm
Weight 28 gr

Se actualiza la version Bluethoot
Especificaicones : El Atmega328 AVR 8-bit es un Circuito integrado de alto rendimiento que está basado un microcontrolador RISC, combinando 32 KB (ISP) flash una memoria con la capacidad de leer-mientras-escribe, 1 KB de memoria EEPROM, 2 KB de SRAM, 23 líneas de E/S de propósito general, 32 registros de proceso general.

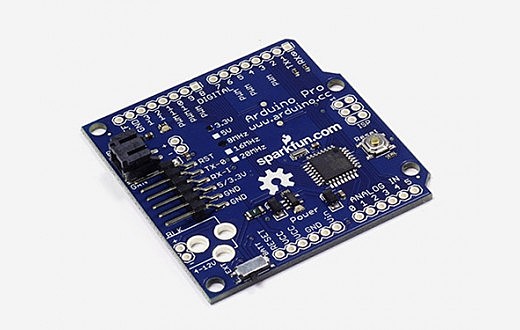

The Arduino Pro is a microcontroller board based on the ATmega328. The Pro comes in both 3.3V/8MHz and 5V/16MHz versions. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a battery power jack, a power switch, a reset button, and holes for mounting a power jack, an ICSP header, and pin headers. The Arduino Pro is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers.

Control Board Summary
Microcontroller ATmega32u4
Operating Voltage 5V
Input Voltage 5V through flat cable
Digital I/O Pins 5
PWM Channels 6
DC Current per I/O Pin 40 mA
Clock Speed 16 MHz
Keypad 5 keys
Knob potentiomenter attached to analog pin
Full color LCD over SPI communication
SD card reader for FAT16 formatted cards
Speaker 8 Ohm
Digital Compass provides deviation from the geographical north in degrees
I2C soldering ports 3
Prototyping areas 4
Radius 185 mm
Heigth 85 mm

Especificaiones :

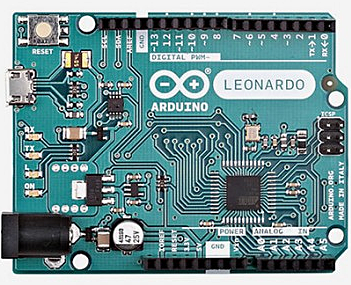

Microcontroller ATmega32u4
Operating Voltage 5V
Input Voltage (Recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 20
PWM Channels 7
Analog Input Channels 12
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega32u4) of which 4 KB used by bootloader
SRAM 2.5 KB (ATmega32u4)
EEPROM 1 KB (ATmega32u4)
Clock Speed 16 MHz
Lengh 68.6 mm
Width 53.3 mm
Weight 20 g
