Rocket Propulaion

By broncoman1524

  • Sputnik

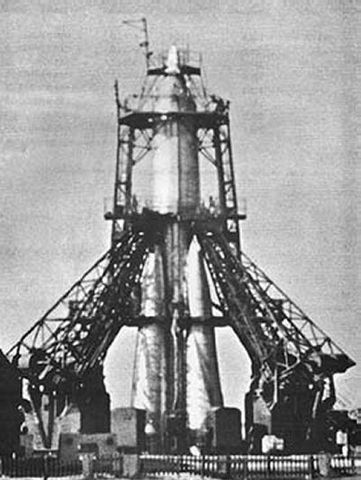

    Sputnik
    Created by the soviet union during the space race. A triple rocket at the bottom all of decent size. Same as always the bottom 3 rockets detach when done to lower weight and then the secondary rocket starts.

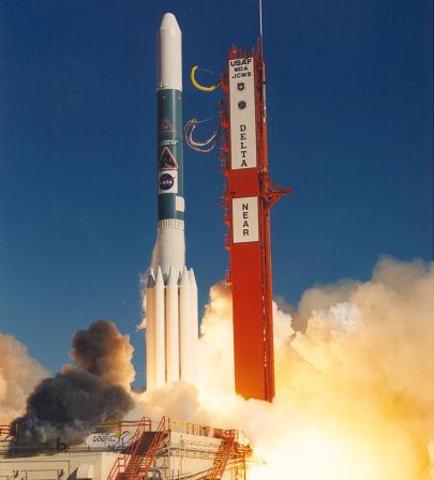

  • Delta

    Delta
    Has a huge rocket in the middle and multiple smaller rockets around it. They all explode at once reaching maximum height until power runs out. Then it is all detached and another rocket sets off making it into space. Made by NASA

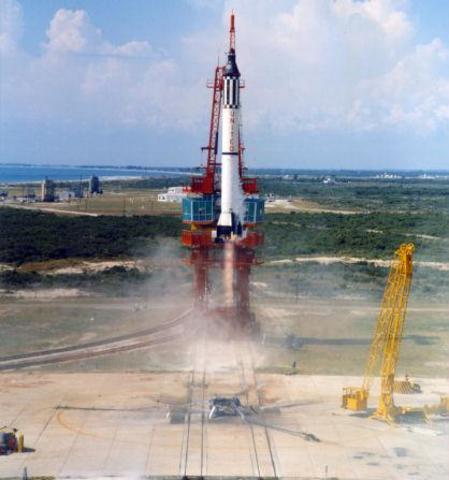

  • Redstone

    Redstone
    NASA's Redstone rocket is an extremely thin rocket design. With an initial rocket that detaches after loss of power then the starting of the secondary rocket starts.

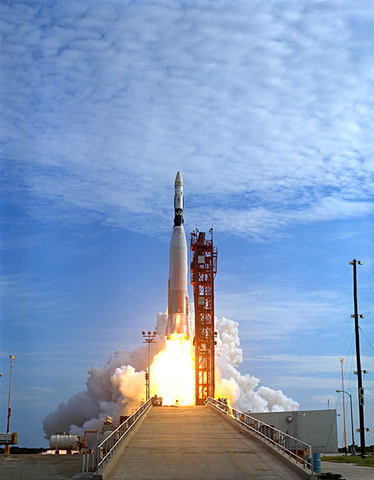

  • Atlas

    Atlas
    Using rocket fuel the Atlas rocket takes off with a huge amount of thrust from the be bottom rocket. When that runs out of power it detaches from the rocket and a secondary rocket thrusts and the rocket is much lighter. Created by NASA.

  • Space Shuttle

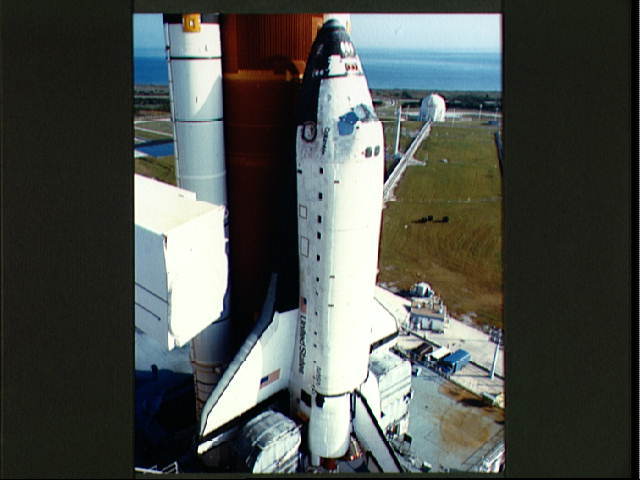

    Space Shuttle
    The space shuttle designed by NASA. Is a plane looking rocket. It is huge with a singular massive rocket. It has wings and a plane looking design. With a huge amount of mass.

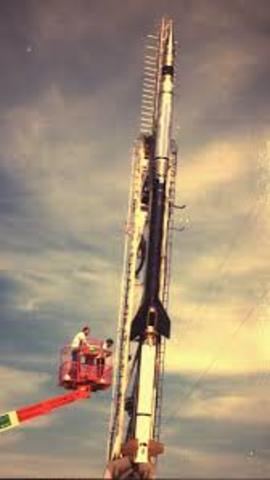

  • Black Brant

    Black Brant
    This rocket is the first three staged rocket. The first one goes off and detaches then the second rocket goes off. And the third rocket is set to go off when vehicle system reaches exoatmospheric conditions.

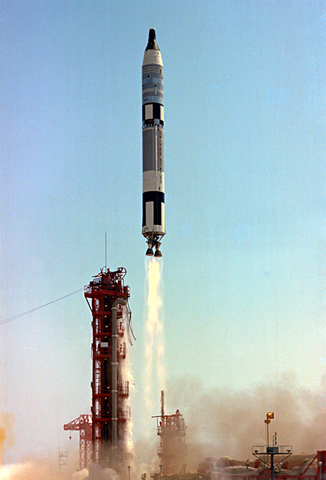

  • Titan

    Titan
    Created by NASA a pencil structured rocket with 3 small rocket at the bottom. And this rocket has no detachable parts. It is the same rocket throughout the entire journey thrusting the rocket upwards.

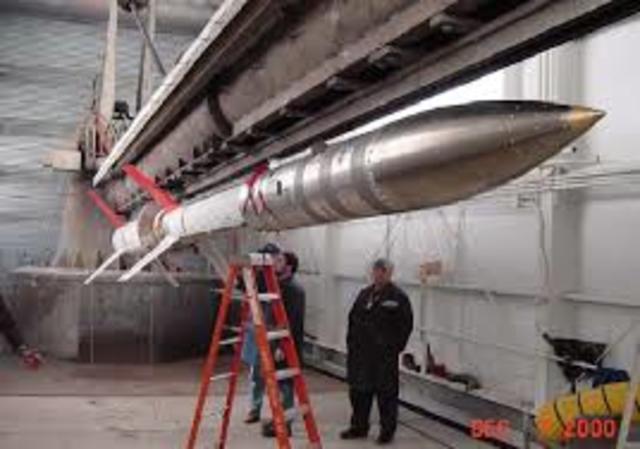

  • Terrier Lynx

    Terrier Lynx
    The Terrier Lynx is a two-stage, unguided, fin stabilized rocket system which utilizes a Terrier mk70 first
    stage booster and a Lynx rocket motor for the second stage propulsion. The Terrier mk70 motor has four
    equally spaced modified Ajax fins.

  • Avatar

    Avatar
    A German spacecraft. LOX/LH2 fuel used to propel the rocket into space. With 2 main rockets meant to propel the spacecraft just inside the atmosphere and to orbit Earth.

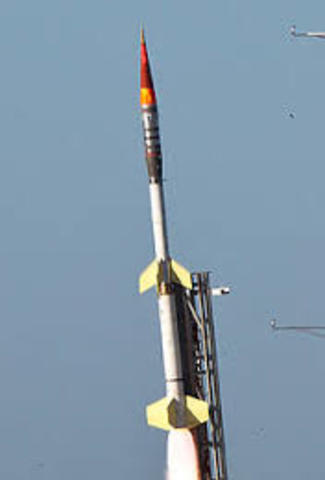

  • Terrior-Orion

    Terrior-Orion
    The Terrier-Orion rocket system is a two stage spin stabilized rocket system which utilizes a Terrier MK 12
    Mod 1 or Mk70 for the first stage and an Improved Orion motor for the second stage. The Terrier motor is
    18 inches in diameter and is configured with 2.5 ft2
    or 4.8 ft2
    fin panels arranged in a cruciform
    configuration. The Orion motor is 14 inches in diameter and 110 inches long. T
