The Atomic Theory: a scientific theory of the nature of matter, which states that matter is composed of discrete units called atoms.

By bjarrar
  • John Dalton findings

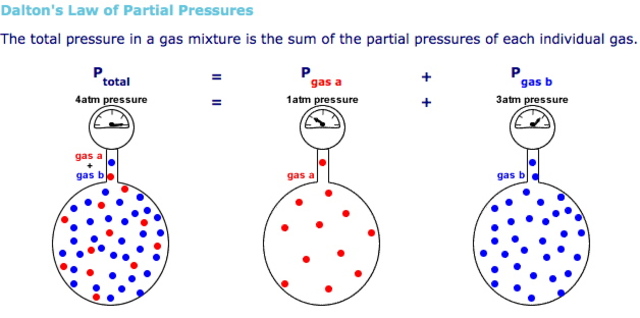

    John Dalton findings
    Dalton's experiments on gases led to his discovery that the total pressure of a mixture of gases amounted to the sum of the partial pressures that each individual gas exerted while occupying the same space. In 1803 this scientific principle officially came to be known as Dalton's Law of Partial Pressures.
  • main points of John Dalton

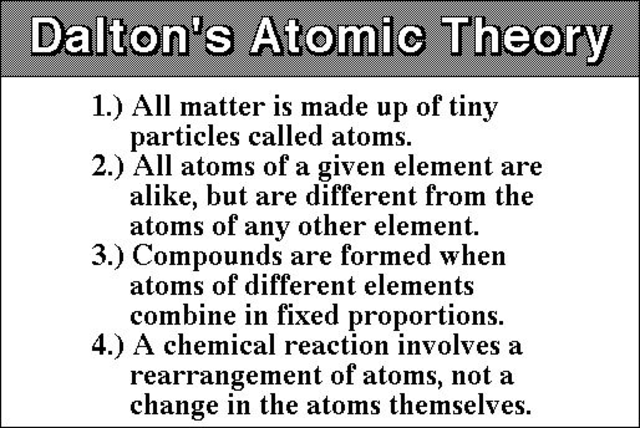

    main points of John Dalton
    Elements are made of extremely small particles called atoms. Atoms of a given element are identical in size, mass, and other properties; atoms of different elements differ in size, mass, and other properties.
    Atoms cannot be subdivided, created, or destroyed.
    Atoms of different elements combine in simple whole-number ratios to form chemical compounds.
    In chemical reactions, atoms are combined, separated, or rearranged.
  • Thomson model

    Thomson model
    Electrons occupy only certain orbits around the nucleus. Those orbits are stable and are called "stationary" orbits.
    Each orbit has an energy associated with it. The orbit nearest the nucleus has an energy of E1, the next orbit E2, etc.
    Energy is absorbed when an electron jumps from a lower orbit to a higher one and energy is emitted when an electron falls from a higher orbit to a lower orbit.
  • Thomson theory

    Thomson theory
    J.J. Thomson discovered the electron by experimenting with a Crookes, or cathode ray, tube. He demonstrated that cathode rays were negatively charged. In addition, he also studied positively charged particles in neon gas.
    He proposed a model of the atom which he likened to plum pudding. The negative electrons represented the raisins in the pudding and the dough contained the positive charge.
  • Rutherford model

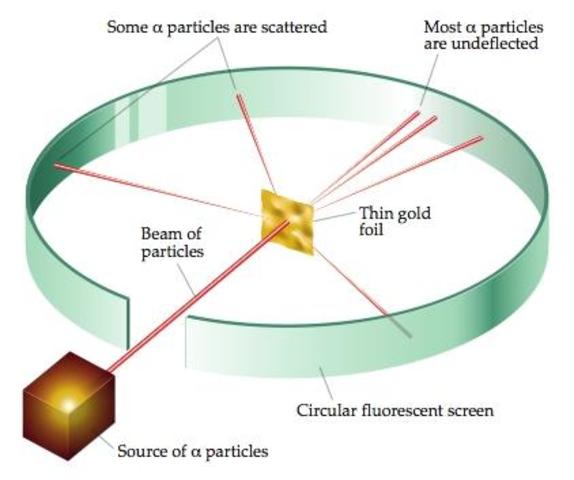

    Rutherford model
    devising his "gold foil" experiment. Rutherford reasoned that if Thomson's model was correct then the mass of the atom was spread out throughout the atom. Then, if he shot high velocity alpha particles at an atom then there would be very little to deflect the alpha particles. He decided to test this with a thin film of gold atoms. As expected, most alpha particles went right through the gold foil but to his amazement a few alpha particles rebounded almost directly backwards.
  • Rutherford

    Rutherford
    Rutherford overturned Thomson's model in 1911 with his well-known gold foil experiment in which he demonstrated that the atom has a tiny, heavy nucleus. Rutherford designed an experiment to use the alpha particles emitted by a radioactive element as probes to the unseen world of atomic structure.
  • Bohr Theory

    Bohr Theory
    Niels Bohr proposed a theory for the hydrogen atom based on quantum theory that energy is transferred only in certain well defined quantities. Electrons should move around the nucleus but only in prescribed orbits. When jumping from one orbit to another with lower energy, a light quantum is emitted. Bohr's theory could explain why atoms emitted light in fixed wavelength
  • Bohr Model Points

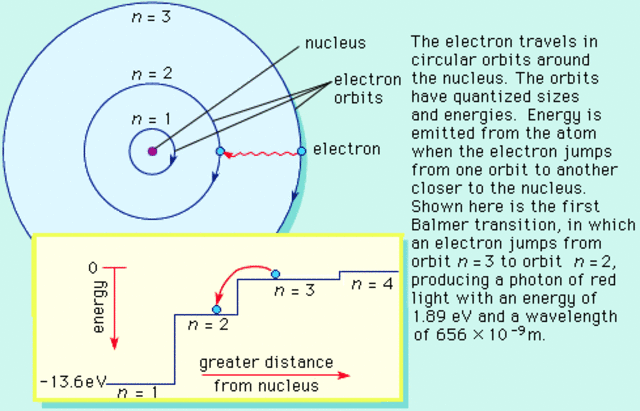

    Bohr Model Points
    Electrons orbit the nucleus in orbits that have a set size and energy.
    The energy of the orbit is related to its size. The lowest energy is found in the smallest orbit.
    Radiation is absorbed or emitted when an electron moves from one orbit to another.
  • planck theory

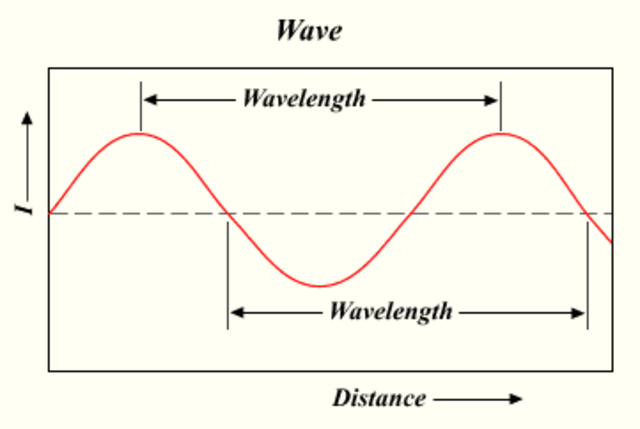

    planck theory
    One photon of light carries exactly one quantum of energy. Planck is considered the father of the Quantum Theory. According to Planck: E=h $\nu$ , where h is Planck's constant (6.62606957(29) x 10 -34 J s), ν is the frequency, and E is energy of an electromagnetic wave.
  • Heisenberg theory

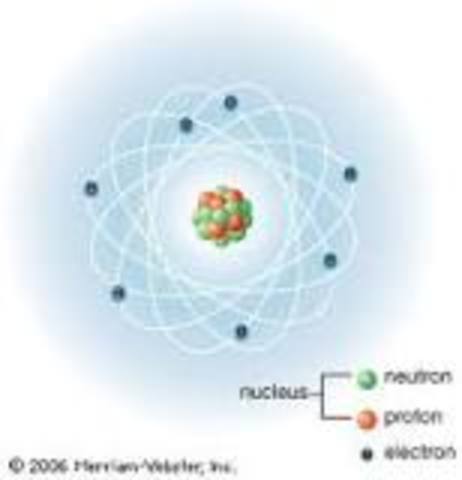

    Heisenberg theory
    Warner Heisenberg contributed to the atomic theory by including quantum mechanics, the branch of mechanics, based on quantum theory, used for interpretation the behavior of elementary particles and atoms.
  • Schrodinger theory

    Schrodinger theory
    Schrödinger used mathematical equations to describe the likelihood of finding an electron in a certain position. This atomic model is known as the quantum mechanical model of the atom. Unlike the Bohr model, the quantum mechanical model does not define the exact path of an electron, but rather, predicts the odds of the location of the electron. This model can be portrayed as a nucleus surrounded by an electron cloud.
