Evolution of Printing

Woodblock Printing

600 BCE

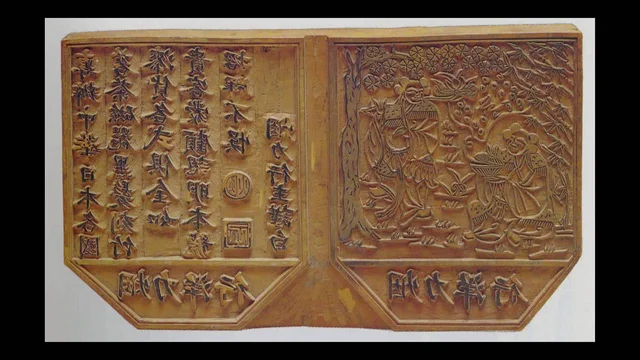

6th-century China during the Tang dynasty. One of many inventions to emerge from this great empire was a system of printing using wooden matrices that were engraved, inked and pressed onto a sheet of paper. The scope of this invention was such that, in modern Chinese historiography, printing is considered one of the four great inventions of Ancient China. One of the first books printed with woodblocks was a copy of the Diamond Sutra (868 AD), a six-sheet scroll over five meters long.

Movable-type printing

1041

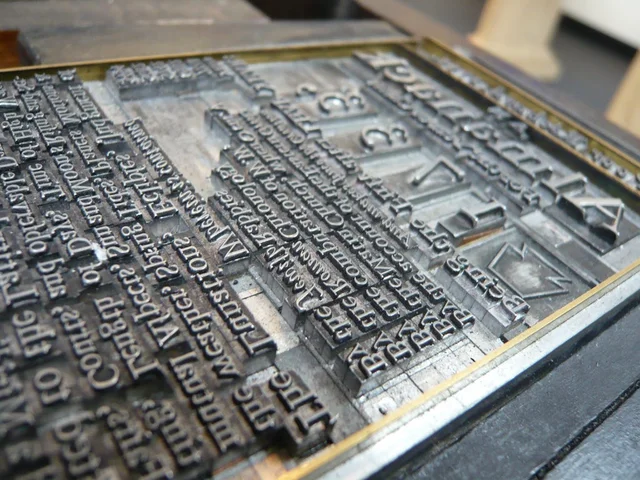

In 1041, the printer Bi Sheng invented movable clay type. However, it had the drawback of breaking easily. In 1298, the inventor Wang Zhen began using much stronger wooden type and invented a complex system of revolving tables that improved the quality of printing.

Gutenberg Printing

1440

Now fast forward to the 15th century and the introduction of movable type in Europe by Johannes Gutenberg. The centrepiece of his technique was the punch, a steel parallelepiped whose head was engraved in relief, and back to front, with a character: a number, letter or punctuation mark. The punch created the matrix in which type was cast, then placed on a tray, inked and pressed onto paper.

Gutenberg Bible

1455

On 23 February 1455, after about a year’s experimentation, the first Gutenberg Bible was published with a print run of 180 copies.

Rotary Press

1846

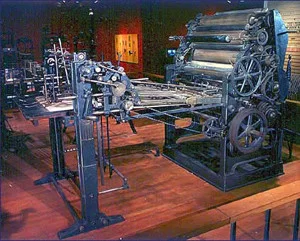

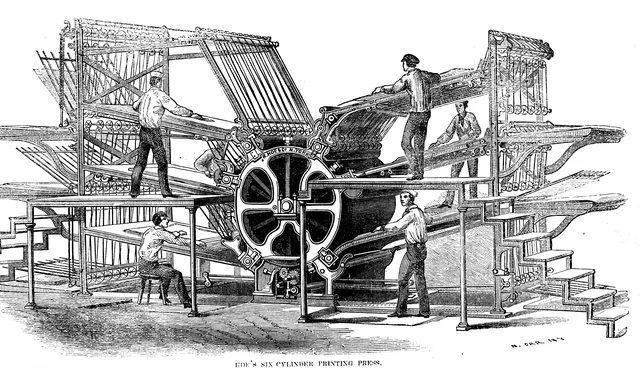

Richard March Hoe has just invented the first rotary press, perfected in 1846 and patented in 1847. In 1863, William Bullock introduced a press that was fed by a paper roll: the images to be printed were curved around rotating cylinders. There was no longer a flat surface that exerted pressure to print: instead, the paper passed through a cylinder which exerted a far greater force. Rotary printing presses could print up to 8,000 sheets an hour.

Offset Printing

1875

In 1875, Robert Barclay invented the offset press for printing on metal.

Linotype

1885

Ottmar Mergenthaler developed the linotype, a typesetting machine. The advantage of this system was that it automatically composed lines of type. It worked in much the same way as a typewriter: the operator composed lines of text by pressing keys on a keyboard. Each key would release a matrix for the corresponding character and this matrix would align with the others. The line of matrices was then filled with molten lead, cast, inked and used to press the characters onto sheets of paper.

Linotype

1886

The linotype machine was used for the first time to print the “New York Tribune”, a daily newspaper founded in 1841 in New York. In Italy, it was first used in 1897 to print the “Tribuna”, one of Rome’s leading dailies. Thomas Edison called the linotype machine “the eighth wonder of the world”, which underlines the importance of this machine in the history of printing.

Offset Printing

1904

Ira Washington Rubel adapted the technology for paper. This indirect method of printing is based on a very simple chemical phenomenon: the repulsion between oil and water. The printing process is anything but simple though. An offset plate is divided into two areas: the image area, which is lipophilic and therefore attracts the ink; and the non-image area, which is hydrophilic, and repels the ink. The plate is dipped in a solution that binds to the non-image area, and then inked.

Xerox printing

1968

Xerox Corporation developed laser technology. In a laser printer, the content to be printed is generated by electronic processes and printed directly onto the sheet of paper. To be more precise, the laser transfers the image to a photosensitive selenium cylinder (called a “drum”) and from there, using toner, it’s directly applied to the paper. With this system, it’s possible to print around 20,000 lines a minute. Record breaking.

Desktop laser printer

1982

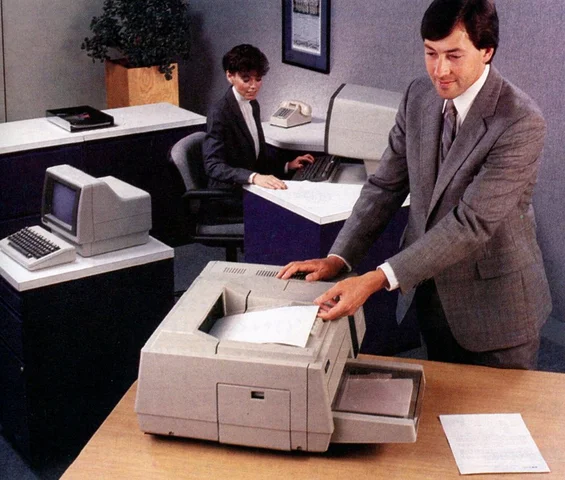

And we had to wait until 1982 for the first desktop laser printer to be released by Canon. However, its high cost meant few could afford one.

Laser Printer

1988

It wasn’t until the beginning of the 1990s that laser printers became widely accessible to the public, along with inkjet, dot matrix and dye-sublimation printers. Ever since, printers have become ever cheaper, more compact and efficient.

3D Printing

1998

In 1983 to be exact, Chuck Hull used UV rays. The engineer baptized his invention “stereolithography”: a method that allows solid objects to be created by adding overlapping layers of a photosensitive liquid polymer which has been struck by UV light. Today, there are various technologies for 3D printing. They can use materials that are melted by heat, liquid materials that are hardened or materials that are laminated and bound together.
